Review Mechanical and Plumbing Systems Using the BIM Viewer

Since your BIM model likely contains mechanical and plumbing systems, you will find it convenient to view this information in the BIM Viewer. For example, you may be planning maintenance or construction work that requires access to plumbing, mechanical, or electrical systems behind walls. Likewise, you may need to see mechanical and plumbing systems if you are installing new equipment.

The toolbar in the viewer pane of the BIM Viewer includes commands for focusing the model on mechanical and plumbing systems.

Icon Command Description
Mechanical Systems Presents a list of the model's mechanical systems, from which you can choose one to display in the viewer pane.
Plumbing Systems Presents a llist of the model's plumbing systems, from which you can choose one to display in the viewer pane.

View Mechanical or Plumbing Systems

  1. Load the BIM Viewer and load a model.

  2. In the toolbar at the top of the viewer panel, click the Mechanical Systems or Plumbing Systems icon.

  3. The commands present a list of mechanical systems or plumbing systems stored in the model.

    • Choose All to see all plumbing or mechanical systems; in the image below, the user has selected to see all plumbing systems.

    • Select a specific system from the list, and the viewer zooms into that system and displays the components of that system in blue; other systems will appear in green. (To see an example of the other systems outlined in green, examine the last image in this topic.)

      In the below image, the user has selected the CWR11 plumbing system and the viewer has zoomed into this system and displayed it in blue.

Examine Individual Equipment Components of Mechanical and Plumbing Systems

The components of the mechanical or plumbing system might be registered in Archibus and stored in the Equipment table. Click on a component of the system and if it is linked to an Equipment record, its details will appear in the Equipment Details panel, on the left.

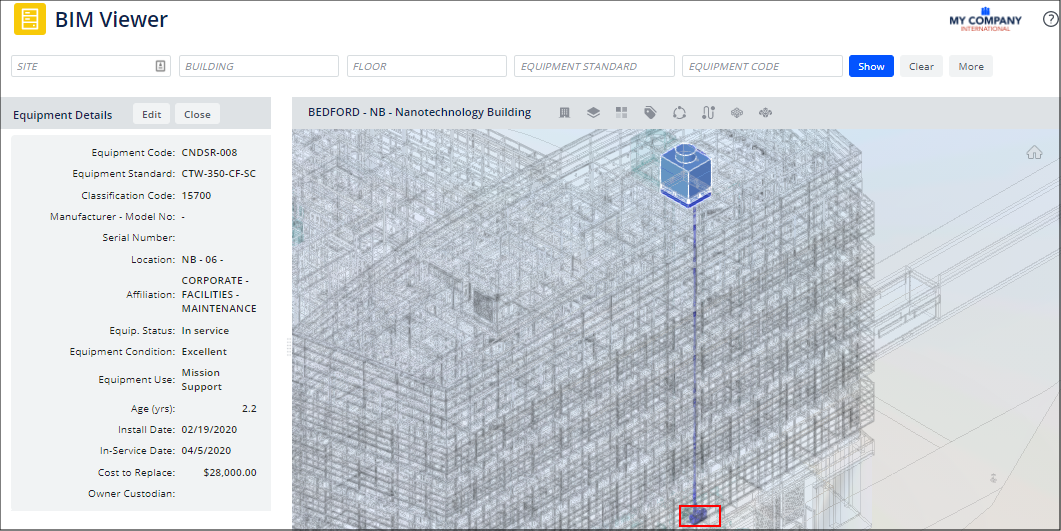

For example, in the CWR11 plumbing system from the above procedure, the cooling tower on level 6 (equipment item CNDSR-008) is stored in an Equipment record. Clicking on this component of the plumbing system displays its details in the Equipment Details panel. For information on working with the Equipment Details panel, see Review and Update Equipment Details.

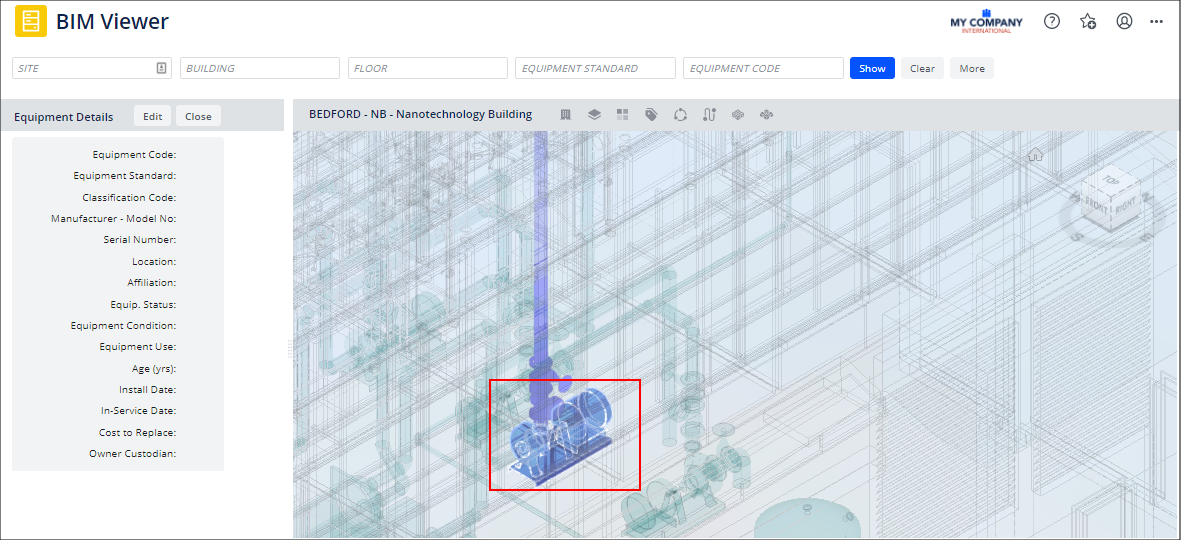

It is possible that not all components of a mechanical or plumbing system are stored as Equipment records. In the above image, notice the component at the bottom of the system indicated with the red box. As shown in the below image, if you zoom into this area and click on this component you will see that the BIM Viewer does not present an Equipment record in the Equipment Details pane. This component of the plumbing system, while represented in the BIM model, has not been registered in the Equipment table.


See Also

BIM Viewer: Overview
