Enabling Document Management for Drawings

As an Archibus Administrator, use these procedures to enable the Document Management for Drawings feature. The Smart Client enables the Document Management for Drawing features on a per-project basis so that all users connected to that project will manage drawings with the same consistent set of procedures.

Note: The Document Management for Drawings feature is not available in Archibus SaaS deployments.

Deployment Type: Enterprise

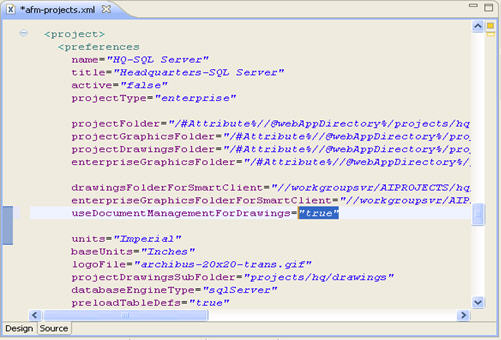

  1. Change the value of the useDocumentManagementForDrawings preference to true in the afm-projects.xml file on the Web Central server, and then restart the server.

  2. Notify the CAD specialists that they must sign out, then sign in to the Smart Clients.
  3. After Document Management for Drawings is enabled, CAD specialists may wish to change the default location to which the program checks out drawings for editing on their local machines. To do so, they must:
    • Sign in to Smart Client.
    • Choose the Preferences command on the ribbon toolbar.
    • Set the Local Drawing Files Folder to their desired location.
